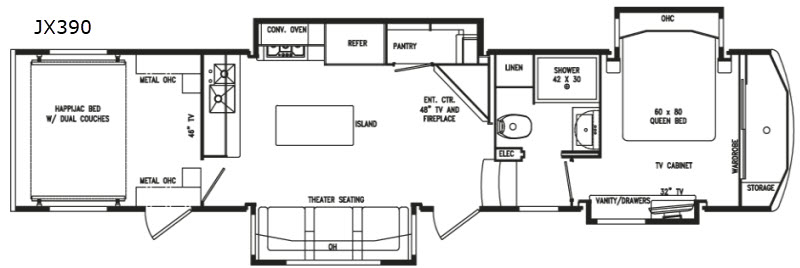

Used 2019 DRV Luxury Suites FullHouse JX390

Standard Features (2019)

Frame/Running Gear

• Goodyear® 17 1/2" H-Rated Re-Groovable Tires
• Heavy Duty Grease Bolt Shackles with Bronze Bushing
• Automotive Style Disc Brakes (Most Models)
• Heavy Duty 8,000 Lb. Rated Axles
• Commercial Grade EZ Lube Hubs
• 15" Triple Stacked Box Tube Frame
• 101" Wide Body
• Industrial Hydraulic System for Jacks and Lower Level Slides
• Electric Bedroom Slide
• Slide Outs with Select Push Button Controls
• Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction: Floor

• 3" Thick Floor
• 14" O.C. Floor Aluminum Floor Joists
• Screwed and Glued Joist Construction
• 5/8" Tongue and Groove Plywood Flooring
• Four Season Perimeter Heat Ducting in Floor
• Residential Rated R29 Formaldehyde Free Wool Insulation

Construction: Walls/Slides

• 3 1/4" Thick Walls/Slides
• 16" O.C. Stud Spacing
• Screwed and Glued Aluminum Stud Construction
• 1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
• 1/4" Thick High Gloss Gelcoat Fiberglass
• Residential Rated R16 Formaldehyde Free Wool Insulation

Construction: Roof

• 16" O.C. Rafter Spacing
• Residential Rated R25 Formaldehyde Free Wool Insulation
• 1/2" Plywood Roof Overlayment
• Seamless, 1-Piece Rubber Roof
• Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior

• Straight Roof Line with 8' Tall Interior Slide Out Height
• Subzero Thermo-Pack High Density Wool Insulation
• High Gloss Gelcoat Fiberglass
• High Gloss Gelcoat Fiberglass Molded Caps
• Custom Painted Exterior with Clear Coat
• Frameless Tinted Safety Glass Windows
• Back-Up Lights with 50 Watt Halogen Lights
• Commercial LED Exterior Clearance Lights
• LED Docking Lights
• Dual 78" Entry Door
• Removable Storm Door Panels
• Metal Slam Door Compartment Latches
• Extra Thick Compartment Doors with Gas Struts
• Easy Access Light Switches for Basement
• Custom Enlarged Control Center with LED Lighting
• Lend-a-Hand Exterior Grab Handle
• Power Awning with Aluminum Weather Shield (Over Both Entry Doors)
• Water Pump Switch at Outside Hookup Center

Systems/Tanks

• 50 Amp Service with Detachable Cord
• 80 Amp 12 VDC Converter
• 100 Gal. Fresh Water Tank
• 75 Gal. Grey Water Tank with Power Flush
• 50 Gal. Black Water Tank with Power Flush
• SeeLevel Tank Monitoring System on All Tanks
• Residential Type 1/2" Water Lines
• Exclusive Copper Water Manifold with Individual Shut-Off Valves
• Whole House Water Filtration System
• Multi-Switch Water Bypass System
• Slide Out Propane Tray with Dual 40 Lb. Tanks
• 12VDC Battery on Pull Out Tray
• 12 Gal. Gas/Electric DSI Water Heater
• 40,000 BTU Furnace with Custom Plenum
• Residential 5 Duct Heating System with 6" Ducting
• Forced Heat Ducting to Tanks/Water System
• Fully Ducted A/C System with Cold Air Return
• Triple 15,000 BTU Low-Profile A/Cs
• Solar Prep
• HD Roof Satellite Prep for Dual DVR Receivers
• HD Ground Satellite and Cable Prep
• HD TV Antenna

Interior: Luxury Living Room/Dinette

• Hand Laid Vinyl Floor Tile
• Residential Rebond Carpet Pad
• Plush Residential High Durability Carpet
• Hazelnut/Mocha Cherry Solid Hardwood Cabinetry
• Solid Hardwood Fascia Trim Around Slide Outs
• Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
• Concealed Cabinet Door Hinges
• Raised Panel Cabinetry
• Soft-Close Full Extension Metal Drawer Guides
• LED Interior Ceiling Lighting on Dimmer Switches
• Utility Closet with Coat Storage and Centralized Control Station
• Interior Ceiling Fan
• Custom Hardwood Dinette Buffet with Solid Surface Top (Some Models)
• Dinette Table with Hidden Leaf Extension (Some Models)
• (2) Hardwood Dinette Chairs with Fabric Accent (Some Models)
• Crown Molding Throughout
• HD Wiring Throughout

Interior: Gourmet Kitchen

• 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
• Stainless Steel Convection/Microwave
• Pull-Out 13 Gal. Garbage Can
• Deep Double Bowl Stainless Steel Sink with Sink Covers
• Residential Kitchen Faucet with Sprayer
• High Polished Solid Surface Countertops
• Sealed 3 Burner Cooktop with Hinged Countertop Lift
• Custom Appliance Garage with Pull-Out Tray (Most Models)
• Lighted Pantries and Kitchen/Bathroom Toe Kicks

Interior: Master Bath/Hallway

• Hardwood Steps
• Hand Laid Vinyl Tile in Hallway/Bathroom
• No Carpet in Hallway
• Washer/Dryer Prep
• Heat and A/C Ducting in Bathroom
• Maxxair® Fan in Bathroom
• 1-Piece Fiberglass Shower with Molded Seat
• Sky-Light Over Shower with LED Pot Light
• Porcelain Toilet with Water Saver Spray
• Macerator Toilet (Some Models)

Interior: Master Bedroom

• Custom Walk-in Front Closet with Built in Dresser (Most Models)
• Real Cedar Lined Front Closet
• Custom Hardwood Wardrobe Doors
• King Bed Suite 72" x 80" with Innerspring Mattress (Most Models)
• Full Storage Under Bed Base
• Separate Bedroom Ceiling Speakers
• Over the Bed Reading Lights on Separate Switches
• Vanity Slide

Garage

• Industrial Metal Overhead Cabinetry
• LED Lighting
• 49" LED HD TV
• Touch Screen/Blue Tooth Garage Audio/Entertainment System
• Dual 30 Gal. Fuel Tanks with Fuel Pump and Fill Station

Full House Package (Forced Option)

• 55" LED TV and Home Theatre Package
• 32" LED Bedroom TV Package
• 49" LED TV Garage
• Garage Entertainment System with Touch Screen
• Goodyear® 17 1/2" H-Rated Spare Tire
• Side Mounted Fold-Out Ladder
• Frameless Thermopane Windows
• Dual Door 4-Step Entry

Executive Package (Forced Option)

• MCD Day/Night Roller Shades
• Built-In Fireplace
• Magnum 1000W Inverter with Dual 6V Batteries
• Maxxair® Fan with Rain Sensor - Bathroom
• Maxxair® Fan with Rain Sensor - Kitchen
• Power Management System
• Six Point Hydraulic Leveling System
• One Touch Auto Leveling
• Keyless Entry Door (Both Doors)
• Onan 5.5 Gasoline Generator with Auto Gen. Start

Options

Cabinetry (Standards)

• Hazelnut
• Mocha Cherry

Decor (Standards)

• Mica
• Regency

Flooring (Standards)

• Aged Asphalt
• Portabello
• High Ounce Carpet

Countertop(Standards)

• Caramel Drizzle

Interior

• Power Recliner Theatre Seating/Recliners
• Hazelnut Folding Chair
• Mocha Cherry Folding Chair

Entertianment

• 32" LED HDTV Outdoor Entertainment (Some Models)
• Winegard® Trav’ler HD Auto Satellite
• WiFi Ranger Wireless Router

Kitchen

• 3 Burner Range/Oven IPO 3 Burner Cooktop

Bedroom

• Built in Front Wardrobe Safe with Keyless Entry
• Queen Bed Suite

Garage

• Electric Drop Down Sofa/Bed
• Electric Drop Down Bed
• Fold-Up Outdoor Patio
• 3 Season Patio Door
• Removable Table

Systems/Vents/Fans

• Heat Pump
• Maxxair® with Switch Control – Garage
• Splendide® Front Load 2 piece
• Splendide® XC 2,100 Combo

Construction/Running Gear

• Power Cord Reel (Some Models)
• HBA Brake Cam (To be Ordered Special for Customers with GM Trucks)

Exterior/Awnings

• Slide Toppers
• Power Dinette Slide Awning with Weathershield
• Slide Out Storage Tray (36" x 90")
• Audible Wireless Backup Camera System
• CSA

Partial Body Paint (Standards)

• Grey Stone
• Twilight Mist

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
