Request Lowest Price

Used 2012 Tiffin Motorhomes Phaeton 42 QBH

Motor Home Class A - Diesel

Stock #209235

Huntsville

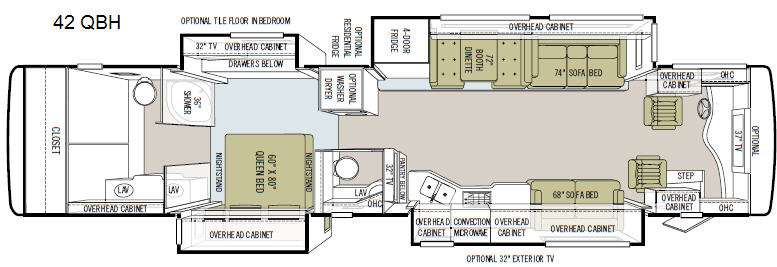

Floorplan - 2012 Tiffin Motorhomes Phaeton 42 QBH

1 of 43

+43

Specifications

Sleeps	8	Slides	4
Length	42 ft 6 in	Ext Width	8 ft 5 in
Ext Height	12 ft 7 in	Int Height	7 ft
Hitch Weight	10000 lbs	GVWR	45000 lbs
Fresh Water Capacity	90 gals	Grey Water Capacity	70 gals
Black Water Capacity	50 gals	Tire Size	275/80R22.5
Furnace BTU	65000 btu	Miles	60358
Engine	Cummins ISC 400 Hp	Chassis	Freightliner
VIN	4UZFCHCY6CCBM3344

n/a

Features

Standard Features (2012)

Mechanical Specs.

Raised Rail Chassis Frame
Air Ride (4 Air Bags)
Aluminum Wheels
Exhaust Brake
Adjustable Accelerator & Brake Pedals
Allison 3000 MH 6-speed Automatic Transmission
Air Brakes with Automatic Slack Adjusters & ABS
55° Wheel Cut
Fog Lights & Docking Lights
Daytime Running Lights
VIP 18" Steering Wheel
Cruise Control
Emergency Start Switch
One-piece Molded Fiberglass Roof Cap
Overall Length (Approximate): 36 QSH: 36' 9"; 40 QBH, 40 QKH, 40 QTH: 40' 5"; 42 QBH: 42' 6"
Overall Height with Roof Air (Maximum): 12' 7"
Interior Height: 84"
Overall Width: 101"
Interior Width: 96"
Fresh Water (Gallons): 90
Black Water (Gallons): 50
Grey Water (Gallons): 70
LPG Tank (Gallons; can only be filled to 80% capacity): 35.7
Basement Storage: TBD
Wheel Base: 36 QSH: 228"; 40 QBH, 40 QKH, 40 QTH: 266"; 42 QBH: 296"
Tire Size: 275/80R22.5
Minimum Garage Height: 13'
Alternator Amps: 170 (except on 42 QBH: 160)
Trailer Hitch Capacity: 10,000 Lb.
Fuel Tank (Gallons) – Dual Fuel Fill: 100
Laminated Floor, Sidewall & Roof
Steel/Aluminum Reinforced Structure

Phaeton Freightliner and Spartan Chassis

Freightliner Chassis with Cummins ISC 380 HP/1050 Lb. Torque (S on all except 42 QBH)
Spartan or Freightliner Chassis with Cummins ISC 400 HP/1200 Lb. Torque (42 QBH)
GVWR: 32,000 Lb. (except on 42 QBH: 42,600 Lb.)
GAWR-Front: 12,400 Lb. (except on 42 QBH: 12,600 Lb.)
GAWR-Rear: 20,000 Lb.
GAWR-Tag Axle: NA (42 QBH only: 10,000 Lb.)
GCWR: 42,000 Lb. (except on 42 QBH: 52,600)
DEF Tank* (Gallons): 13

Phaeton PowerGlide Chassis

Optional for 40 QBH, 40 QKH, 40 QTH
Cummins ISC 380 HP/1050 Lb. Torque
GVWR: 36,600 Lb.
GAWR-Front: 14,600 Lb.
GAWR-Rear: 22,000 Lb.
GAWR-Tag Axle: NA
GCWR: 46,600 Lb.
DEF Tank* (Gallons): 15

Construction (Roof)

One-piece, moistre resistant molded fiberglass roof cap provides insulation and strength and prevents water intrusion.
A/C Condensation Drainage System that runs internally through the roof insulation and down the sidewalls, redirecting water underneath the motor home.
5 1/2" formed insulation
Quiet Air Cooling System with return air and foil-wrapped cooling exhaust ducts
Durable, tubular aluminum roof skeleton
Easy-to-clean soft touch vinyl ceiling panel

Sidewalls

Gel-coat fiberglass outside wall panel
High-performance thermal insulation
Durable, yet lightweight, tubular aluminum wall skeleton
Decorative inside wall panel
All sidewalls are approximately 2" thick

Exterior

Hydraulic Automatic Leveling Jacks
Large Tinted One-piece Windshield
VelVac® Heated Power Mirrors with Integrated Cameras•Single Motor Intermittent Wiper
Lighted, Lockable Swing-out Storage Doors with Gas Shocks
Window Awning Package (2 Windows)
BASF Full Body Paint with Protective Film
Entry Door Deadbolt & Remote Locking System
Fiberglass Front & Rear Caps
Double Electric Step
Dual Pane Windows
Exterior Patio Light
Automatic Door & Patio Awnings
Slide-out Covers
Roof Ladder
Heated Water & Holding Tank Compartments
Four 6 V Auxiliary Batteries
Park Telephone Ready
Black Tank Flush System
Water Filter
Undercoating
Dual Fuel Fills
Custom Mud Flap
110 V Exterior Receptacle
Digital TV Antenna & Cable Ready TV
Back-up Camera
2000 Watt Inverter with 100 Amp Converter & Transfer Switching
8.0 kw Onan® Manual Slide-Out Generator (42 QBH: NA)•Two 15,000 BTU Low Profile Roof Air Conditioners with Heat Pumps (42 QBH: NA)

Options

Spotlight
One or Two Storage Compartment Slide-out Tray(s) (2 NA on 36 QSH)
Hadley Air Horns
•n-motion or Automatic Satellite Dish
Prewired for Winegard Traveler Satellite (NA with In-motion or Automatic Satellite)
Exterior 32" TV
Tankless Gas Water Heater
Three Low Profile Roof Air Conditioners with Heat Pumps (36 QSH: NA; 42 QBH: S)

General Interior

7' Ceilings with LED Bullet Lights
Soft Touch Vinyl Ceiling with Trey Ceiling in Living Area
Porcelain Tile Floor in Kitchen, Living Area, Bath & Entry Landing
Carpeting in Bedroom & Driver’s Compartment with Scotchgard®•High Gloss Raised Panel Hardwood Cabinet Doors & Drawers
Two Ducted Furnaces (One 30,000 BTU & One 35,000 BTU)
Solid Wood Cabinet Fascias with Concealed Hinges
Complete Cable Wiring Interfacing with Surround Sound & Satellite Receiver
Home Theater Sound System with Concealed Speakers
Solar/Privacy RollEase® Shades•Tank Level Monitor System
Carbon Monoxide, LP & Smoke Detectors
10-gallon DSI Gas/Electric Water Heater
Air Driven Step Well Cover
Optional Medium Alderwood, English Chestnut, or Cherry Bark Cabinets
Optional Combo or Stacked Washer/Dryer
Optional Central Vacuum Cleaner

Driver's Compartment

Power Ultra Leather Driver & Passenger Seats with Passenger Footrest
Custom Infrared Repeater System on All TVs
Dual Dash Fans
Snack/Beverage Tray with Drawers
Dual 12 V Dash Receptacle and Disconnect Switch
Single CD Player & AM/FM Stereo
Fire Extinguisher
Computer Slide-out Tray in Dash with Lock-out Rails
Power Solar/Privacy Windshield Shade
Driver/Passenger Side Window Solar/Privacy Shades
Color Rear Vision Monitor System with Side-view Cameras Activated by Turn Signals
Adjustable Seatbelt Brackets
Optional Satellite Radio (Requires Subscription)
Optional 37" Front Overhead TV
Optional In-dash Stereo/Navigational System

Living Room Area / Dinette

Booth Dinette with Laminate Tabletop & Solid Surface Edging
32" Midsection TV in Entertainment Center
Ultra Leather DE Sofa Bed on Passenger’s Side
Cloth DE Sofa Bed on Driver’s Side
Optional Freestanding Dinette with Built-in Cabinets or Computer Workstation
Optional U-shaped Booth Dinette
Optional Cloth DE Sofa Bed on Passenger’s Side
Optional Cloth or Ultra Leather Air Coil Hide-A-Bed Sofa on Passenger’s Side (36 QSH: NA)
Optional Ultra Leather DE Sofa Bed on Driver’s Side
Optional Cloth or Ultra Leather Air Coil Hide-A-Bed Sofa on Driver’s Side (36 QSH only)
Optional Cloth or Ultra Leather Magic Bed on Driver’s Side
Optional Two Leather Lift Recliners on Driver’s Side (36 QSH: NA)

Kitchen

Solid Surface Countertop with Sink & Stove Covers
Expand-an-island
Single Lever Stainless Steel Faucet with Sprayer
Convection Microwave with Exterior Venting
4-door Refrigerator with Icemaker
3-burner Cooktop
Optional Residential Stainless Steel Refrigerator with 6 Batteries
Optional Gas Oven

Bath

Medicine Cabinet with Vanity Lights
Skylight in Shower with Sliding Cover
Solid Surface Vanity Top & Bowl
Custom Raised Panel Bath Door
Glass Shower Surround with Glass Radius Shower Door
3-speed Fantastic® Fan•Price Pfister™ Hand-held Shower Head•Molded Fiberglass Shower (36" for all except 36 QSH: 41")
Optional Tub in Place of Shower (40 QKH only)

Bedroom

Wardrobe with Automatic Light
Bed Comforter with Throw Pillows
Under Bed Storage
Pillow Top Queen Mattress (60" x 80")
Ceiling Fan
32" TV Prewired for DVD & Satellite Receiver
Chest of Drawers with Laundry Hamper
Optional Bunk Beds with Ladder/Convertible Wardrobe (40 QKH: S)
Optional DVD Monitors in Bunk Beds (40 QKH: O)
Optional King Bed Mattress (72" x 80") (NA on 36 QSH)
Optional Select Comfort™ (Dual Control) Bed System- Queen or King•Optional Memory Foam Queen or King Mattress
Optional Tile Flooring in Bedroom (36 QSH and 42 QBH only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
